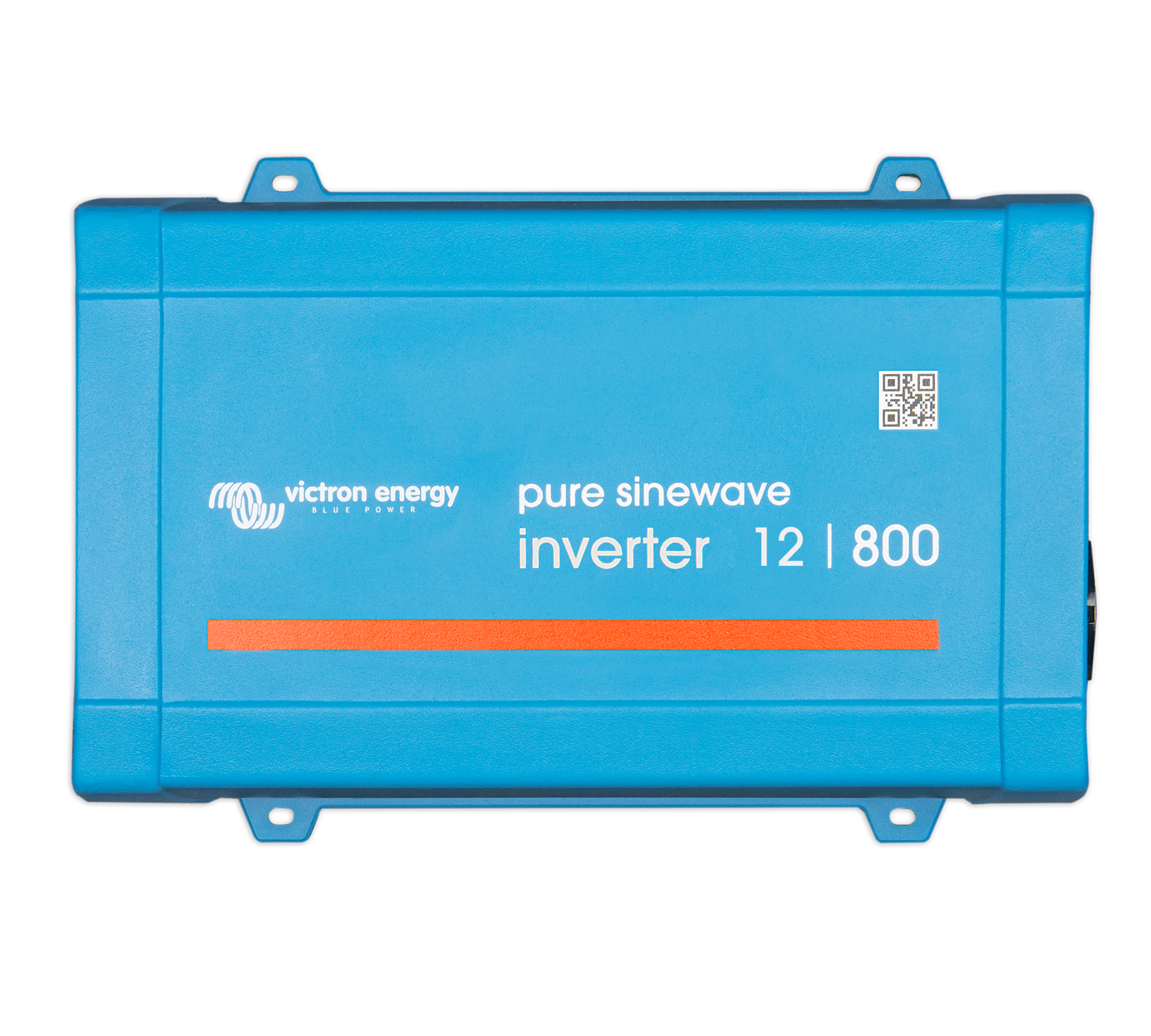

Inverter 12/800 VE.Direct IEC

SKU: PIN121801100

The Inverter 12/800 VE.Direct IEC, part number PIN121801100, belongs to the Victron Energy Inverter VE.Direct product family.

Pre-configuration + remote commissioning available

Victron with technical support

We do more than supply components. If required, we configure suitable devices before shipping and support you or your installer through remote commissioning.

Show optional services

Pre-configuration before shipping
System design and wiring diagram
Technical support for your local installer
Remote configuration and assisted commissioning
On-site installation / commissioning

Add to request

Technical documentation

Datasheets, manuals and certificates directly from the manufacturer.

Open manufacturer documentation

Description

The Inverter 12/800 VE.Direct IEC, part number PIN121801100, belongs to the Victron Energy Inverter VE.Direct product family.

Technical specifications

Nominal battery voltage	12 V
Continuous apparent power at 25 °C	800 VA
Continuous power at 25 °C	650 W
Continuous power at 40 °C	560 W
Peak power	1,500 W
AC output voltage	230 V
Frequency	50 Hz
DC input voltage range	9.2–17 V
Maximum efficiency	90 %
Zero-load power	6.5 W
Zero-load power in ECO mode	1 W
Communication port	VE.Direct
Remote on/off terminal	Yes
Programmable	Yes
AC outlet	IEC-320 (male plug included)
Protection category	IP21
